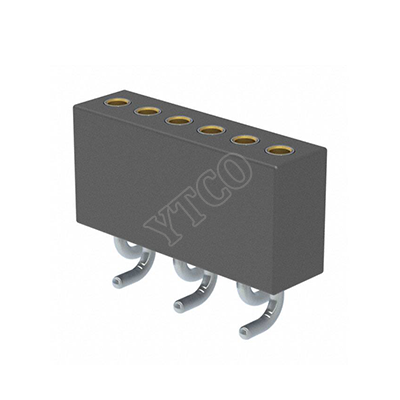

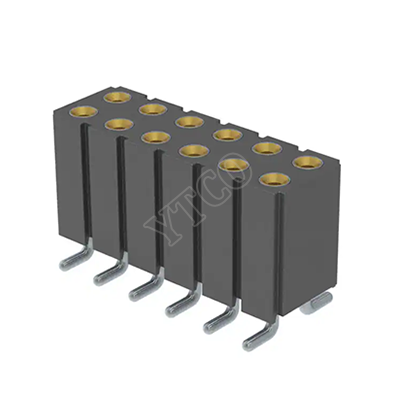

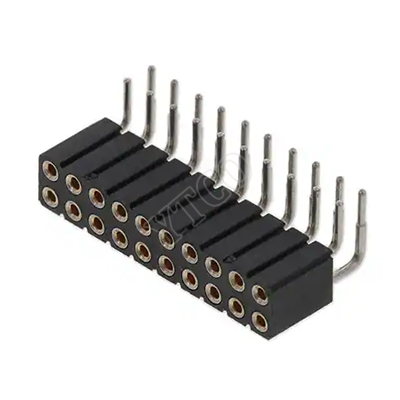

M2170 Series 2.54mm(.100") Dual Row Board Mount Top Entry SMT SIP Socket
Current Rating:3.0AMP
Contact Resistance:10mΩ Max
Dielectric Strength:Min 1000VRMS
Mechanical Life:Min 500 Cycles
Mating Pin:∅0.64 to ∅0.90mm
Forces:(polished steel gauge ∅0.76mm)
-lnsertion:1.2N typ
-withdrawal:0.6N typ
Operation Temperature:-40℃~+105℃
RoHS Compliant
![](upload/20220801113839.png)
Pitch | 2.54x2.54mm(.100"x.100") |
Part No. | M2170-2XXMXX1000AX01 |
Plating Specification | S0= Clip Gold Flash Plated,Sleeve Tin Plated |
Circuit | 04~80 CIRCUITS |

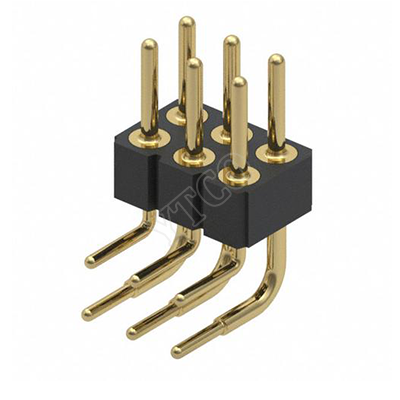

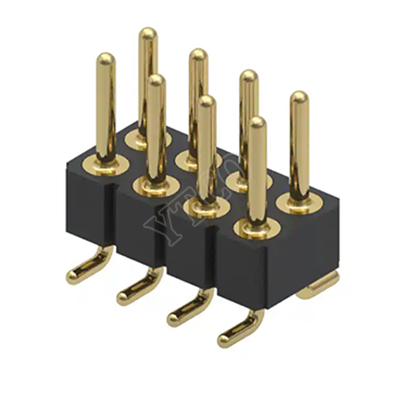

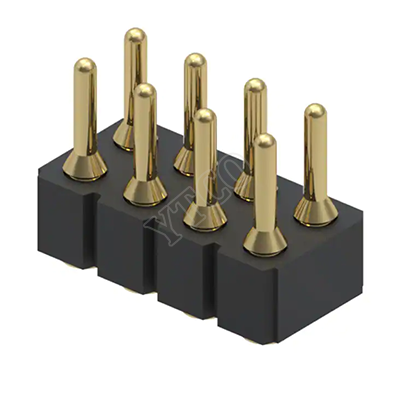

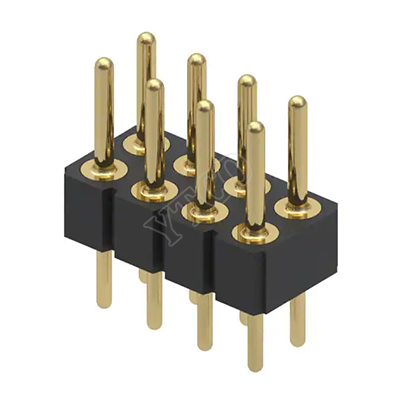

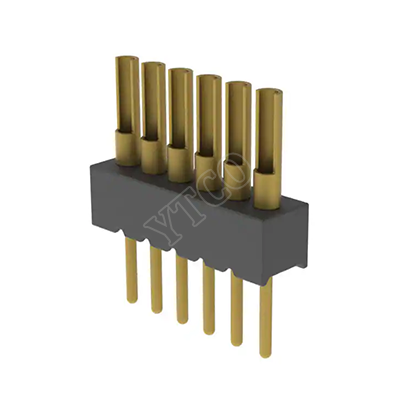

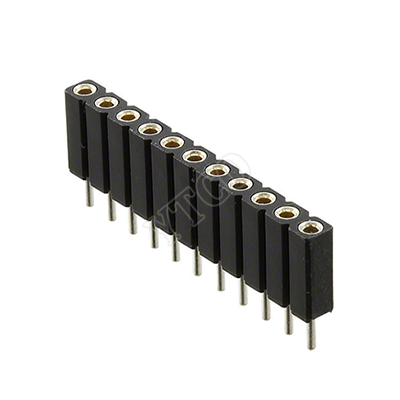

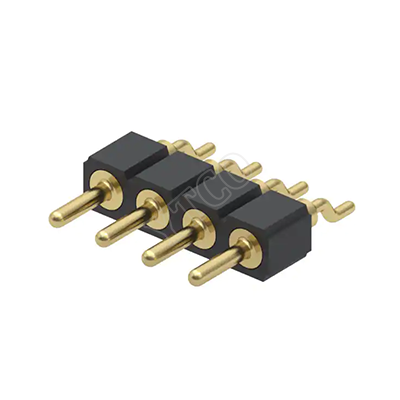

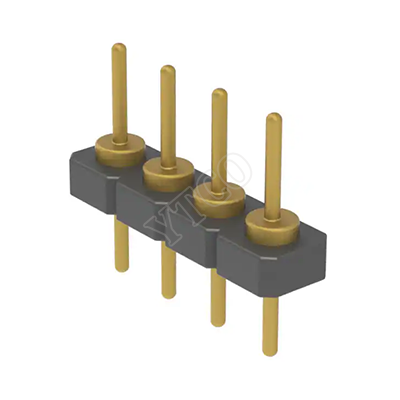

Mate Parts
