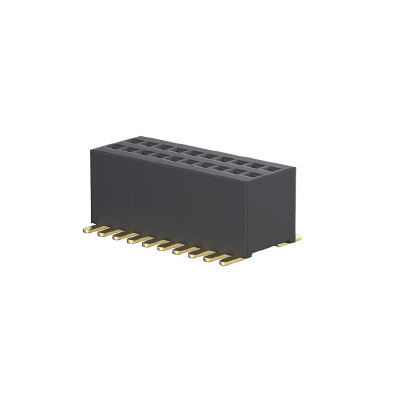

2631 Series 0.80x1.20mm(.032"x.047") Dual Row Top Entry SMT Female Header
Current Rating:0.75AMP
Contact Resistance:30mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:500V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant
![](upload/20220715142222.png)
Pitch | 0.80x1.20mm(.032"x.047") |
Part No. | 2631-2XXMXXXTXX01 |
Plating Specification | G0= Gold Flash Plated over Nlckel |
Circuit | 04~100 CIRCUITS |

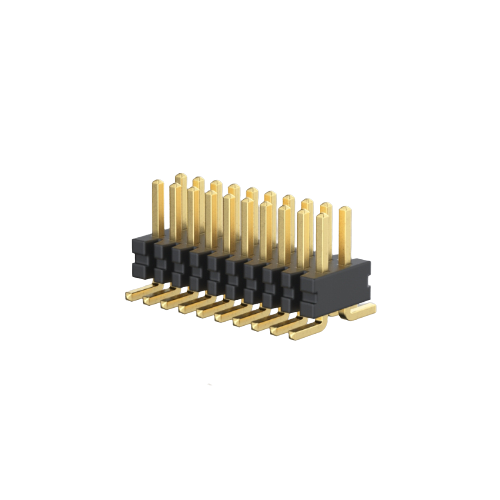

Mate Parts
![](/../../upload/image/20220715/6379348451003804998066275.png)
