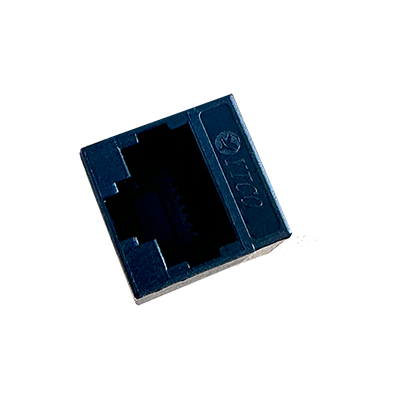

6524 Series Modular Jack 8 Position Top Entry
Rated Voltage:125V DC/AC
Current Rating:1.50AMP
Contact Resistance:30mΩ Max
Insulation Resistance:500MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+85℃
RoHS Compliant
![](upload/20240702115449.png)
Pitch | 6524 |
Part No. | 6524-881XXXX00A03 |
Plating Specification | G0= Gold Flash Plated over Nlckel |
Circuit | 8P8C CIRCUITS |
Mate Parts
