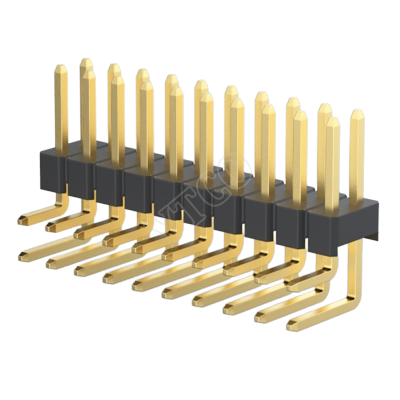

1125 Series 2.54mm(.100") Dual Row Board Mount Right Angle DIP Concave Bending Pin Header
Current Rating:3.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-55℃~+125℃ with Gold
RoHS Compliant
![](upload/20220719130340.png)
Pitch | 2.54x2.54mm(.100"x.100") |
Part No. | 1125-12XXRXXXXXX1X01 |
Plating Specification | G0= Gold Flash Plated over Nlckel |
Circuit | 04~80 CIRCUITS |

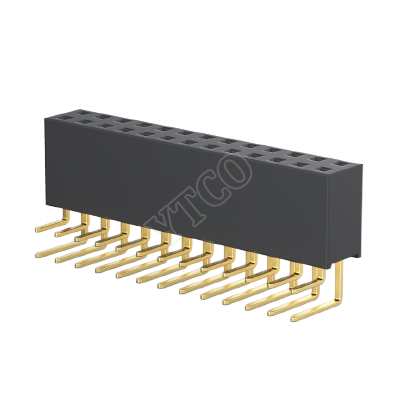

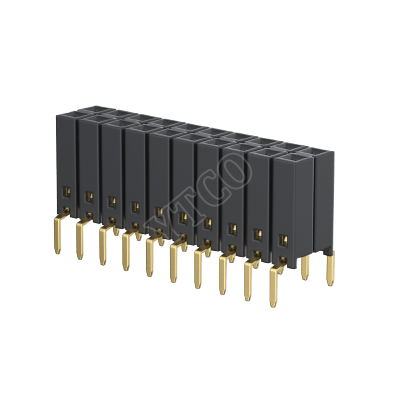

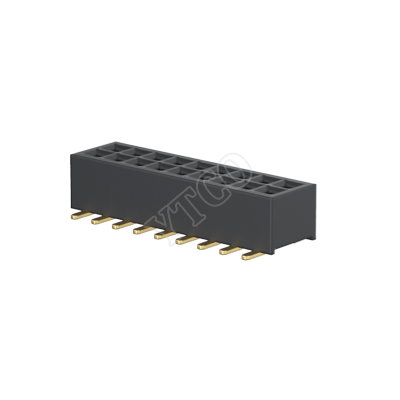

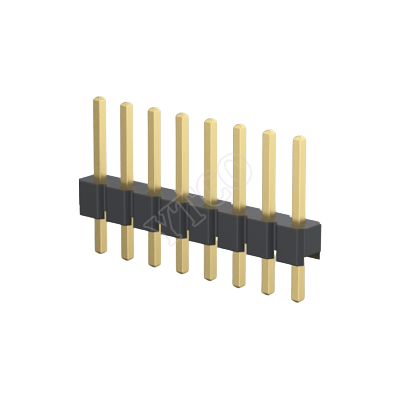

Mate Parts
![](/../../upload/image/20220731/6379488611116913384072642.png)
