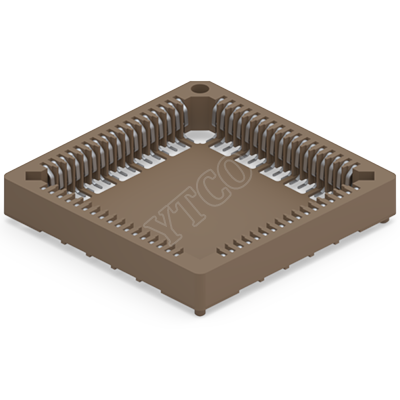

CONNECTOR IC Socket PLCC Socket

7310 Series 1.27mm(.050") SMT PLCC Chip Carrier Socket

Current Rating:1.00AMP
Contact Resistance:30mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:600V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	1.27mm(.050")
Part No.	7310-XXMXXXX01
Plating Specification	SN=Tin Over Nickel Plated
Circuit	20、28、32、44、52、68 、84CIRCUITS

Mate Parts

CONNECTOR IC Socket PLCC Socket

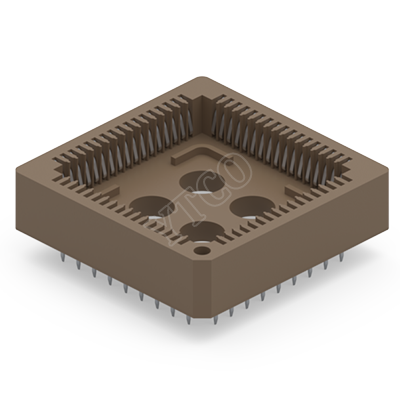

7310 Series 1.27mm(.050") DIP PLCC Chip Carrier Socket

Current Rating:1.00AMP
Contact Resistance:30mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:500V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7310-XXSXXXT01
Plating Specification	SN=Tin Over Nickel Plated
Circuit	20、28、32、44、52、68 、84CIRCUITS

Mate Parts

7310 Series 1.27mm(.050") DIP PLCC Chip Carrier Socket

CONNECTOR IC Socket TO Socket

7028 Series Transistor To Socket Surface Mount

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	5.08mm(.200")/5.84mm(.220")
Part No.	7028-XXXMXX0420AX01
Plating Specification	Tin plated sleeve with Gold Flash plated
Circuit	3、4、8、10 CIRCUITS

Mate Parts

7028 Series Transistor To Socket Surface Mount

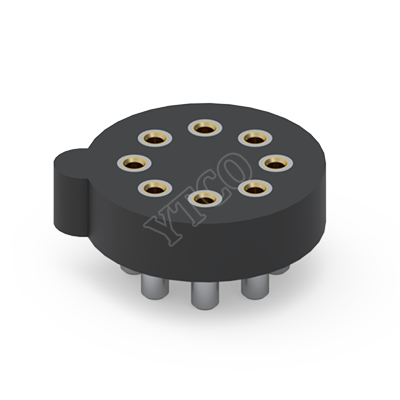

CONNECTOR IC Socket TO Socket

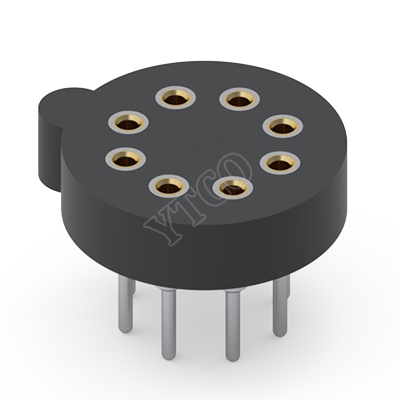

7028 Series Transistor To Socket Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	5.08mm(.200")/5.84mm(.220")
Part No.	7028-XXXSXX0740AT01
Plating Specification	Tin plated sleeve with Gold Flash plated
Circuit	3、4、8、10 CIRCUITS

Mate Parts

7028 Series Transistor To Socket Straight Solder Tail

CONNECTOR IC Socket Machined Pin IC Socket

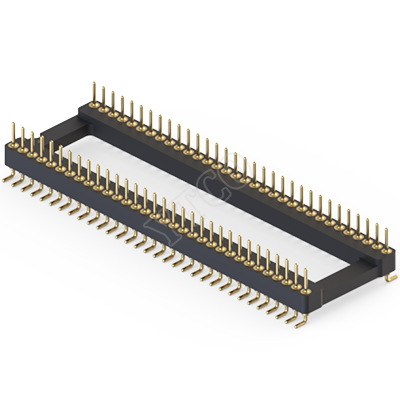

7123 Series 1.778mm(.070") Dual-In-Line Header Open Frame Surface Mount

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	1.778mm(.070")
Part No.	7123-XXXMXXXXXXXT01
Plating Specification	G0= Gold Flash Plated over Nlckel
Circuit	20、24、28、30、32、40、42、48、52、56、64 、68 CIRCUITS

Mate Parts

7123 Series 1.778mm(.070") Dual-In-Line Header Open Frame Surface Mount

CONNECTOR IC Socket Machined Pin IC Socket

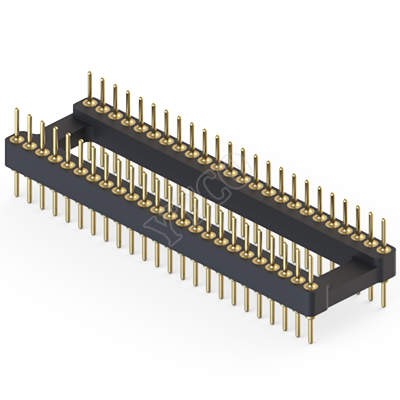

7123 Series 1.778mm(.070") Dual-In-Line Header Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	1.778mm(.070")
Part No.	7123-XXXSXXXXXXXT01
Plating Specification	G0= Gold Flash Plated over Nlckel
Circuit	20、24、28、30、32、40、42、48、52、56、64 、68 CIRCUITS

Mate Parts

7123 Series 1.778mm(.070") Dual-In-Line Header Open Frame Straight Solder Tail

CONNECTOR IC Socket Machined Pin IC Socket

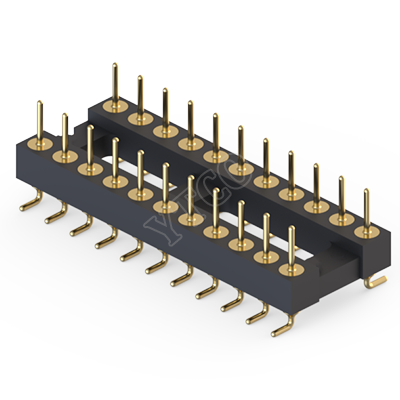

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Surface Mount

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7113-XXXMXXXXXXXT01
Plating Specification	G0=Gold Flash Plated over Nickel
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Surface Mount

CONNECTOR IC Socket Machined Pin IC Socket

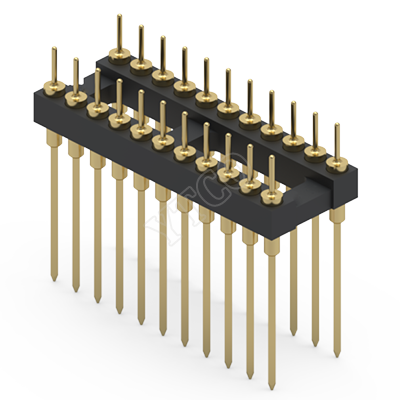

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7113-XXXSXXXXXXXT01
Plating Specification	G0= Gold Flash Plated over Nlckel
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Straight Solder Tail

CONNECTOR IC Socket Machined Pin IC Socket

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7113-XXXSXXXXXXXT01
Plating Specification	G0=Gold Flash Plated over Nickel
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Straight Solder Tail

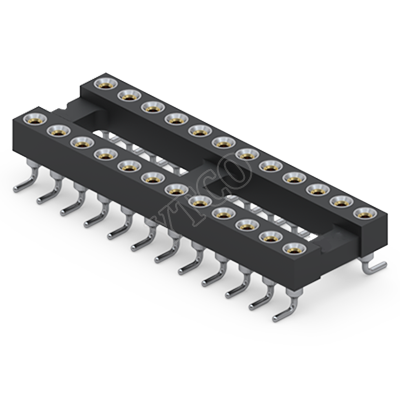

CONNECTOR IC Socket Machined Contact IC Socket

7223 Series 1.778mm(.070") Dual-In-Line Sockets Open Frame Surface Mount

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	1.778mm(.070")
Part No.	7223-XXXMXX0740AT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	20、24、28、30、32、40、42、48、52、56、64 、68 CIRCUITS

Mate Parts

7223 Series 1.778mm(.070") Dual-In-Line Sockets Open Frame Surface Mount

CONNECTOR IC Socket Machined Contact IC Socket

7223 Series 1.778mm(.070") Dual-In-Line Sockets Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	1.778mm(.070")
Part No.	7223-XXXSXX0740AT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	20、24、28、30、32、40、42、48、52、56、64 、68 CIRCUITS

Mate Parts

7223 Series 1.778mm(.070") Dual-In-Line Sockets Open Frame Straight Solder Tail

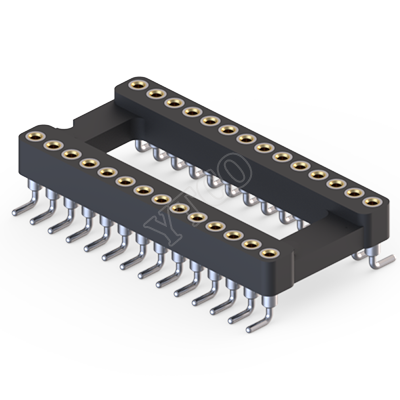

CONNECTOR IC Socket Machined Contact IC Socket

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Surface Mount L4.2mm

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7213-XXXMXX0420AX01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Surface Mount L4.2mm

CONNECTOR IC Socket Machined Contact IC Socket

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Surface Mount

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7213-XXXMXX0743AX01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Surface Mount

CONNECTOR IC Socket Machined Contact IC Socket

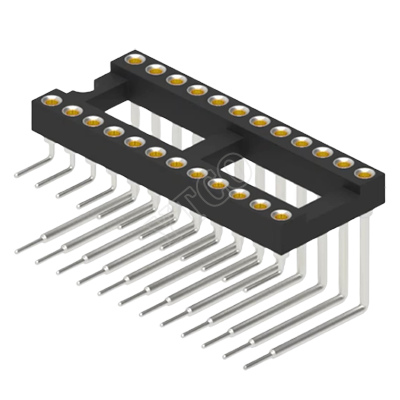

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Right Angle Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7213-XXXRXX0985AT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Right Angle Solder Tail

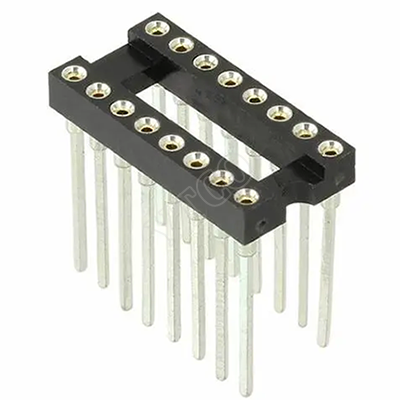

CONNECTOR IC Socket Machined Contact IC Socket

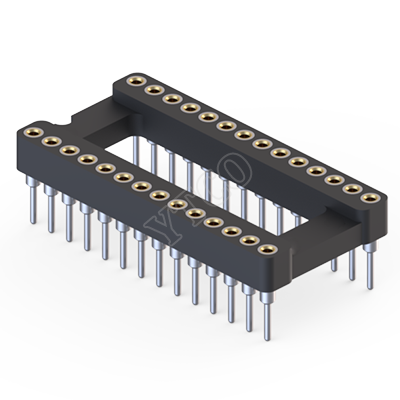

7211 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7211-XXXSXX0482AT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7211 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

CONNECTOR IC Socket Machined Contact IC Socket

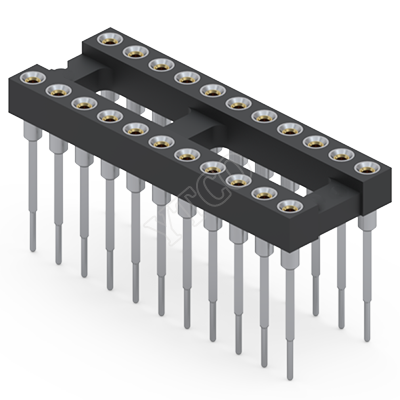

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Wire-Wrap DIP

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7213-XXXSXXXXXXXT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Wire-Wrap DIP

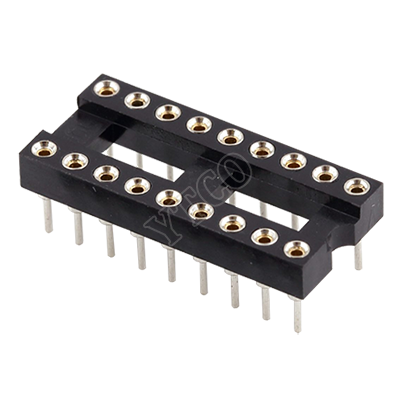

CONNECTOR IC Socket Machined Contact IC Socket

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7213-XXXSXXXXXXXT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

CONNECTOR IC Socket Machined Contact IC Socket

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	7213-XXXSXX0743AT01
Plating Specification	Tin Plated Sleeve With Gold Flash Plated
Circuit	6、8、10、12、14、16、18、20、22、24、28、32、36、40、42、48、50、52、64 CIRCUITS

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

CONNECTOR IC Socket Stamped Contact IC Socket

72S20 Series 1.778mm(.070") IC Socket DIP Stamped Contact

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:600V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch 1.778mm(.070")
Part No.
72S20-XXXSSNT01
Plating Specification
SN=Tin Over Nickel Plated
Circuit 16、20、22、24、28、30、32、40、42、48、52、56、64 CIRCUITS

Mate Parts

72S20 Series 1.778mm(.070") IC Socket DIP Stamped Contact

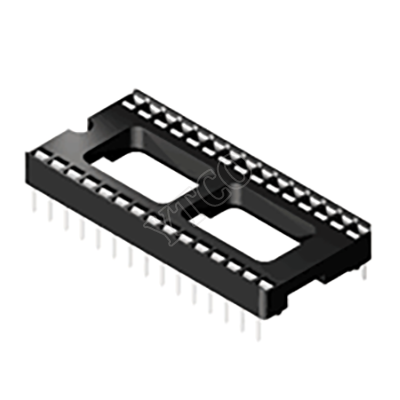

CONNECTOR IC Socket Stamped Contact IC Socket

72S10 Series 2.54mm(.100") IC Socket DIP Stamped Contact

Current Rating:1.00AMP
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:1000V AC/DC
Operating Temp Range:-40℃~+105℃
RoHS Compliant

Pitch	2.54mm(.100")
Part No.	72S10-XXXSSNT01
Plating Specification	SN=Tin Over Nickel Plated
Circuit	6、8、14、16、18、20、24、28、32、40、42、48、64 CIRCUITS

Mate Parts

Product Drawing

72S10 Series 2.54mm(.100") IC Socket DIP Stamped Contact

距离	2= Gold Flash Plated over Nlckel
距离	2= Gold Flash Plated over Nlckel
距离	2= Gold Flash Plated over Nlckel
距离	2= Gold Flash Plated over Nlckel

Car/Charging Pile

5G Network Application

Industry 4.0

Aerospace & Space

Defense Industry

Medical

Broadcast Video

Artificial Intelligence

Customer Support

Resources Support

News

About YTCO

Facility & Equipment

Quality & Environment

Product Types

7310 Series 1.27mm(.050") SMT PLCC Chip Carrier Socket

Mate Parts

7310 Series 1.27mm(.050") DIP PLCC Chip Carrier Socket

Mate Parts

7028 Series Transistor To Socket Surface Mount

Mate Parts

7028 Series Transistor To Socket Straight Solder Tail

Mate Parts

7123 Series 1.778mm(.070") Dual-In-Line Header Open Frame Surface Mount

Mate Parts

7123 Series 1.778mm(.070") Dual-In-Line Header Open Frame Straight Solder Tail

Mate Parts

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Surface Mount

Mate Parts

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Straight Solder Tail

Mate Parts

7113 Series 2.54mm(.100") Dual-In-Line Header Open Frame Straight Solder Tail

Mate Parts

7223 Series 1.778mm(.070") Dual-In-Line Sockets Open Frame Surface Mount

Mate Parts

7223 Series 1.778mm(.070") Dual-In-Line Sockets Open Frame Straight Solder Tail

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Surface Mount L4.2mm

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Surface Mount

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Right Angle Solder Tail

Mate Parts

7211 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Wire-Wrap DIP

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

Mate Parts

7213 Series 2.54mm(.100") Dual-In-Line Sockets Open Frame Straight Solder Tail

Mate Parts

72S20 Series 1.778mm(.070") IC Socket DIP Stamped Contact

Mate Parts

72S10 Series 2.54mm(.100") IC Socket DIP Stamped Contact

Mate Parts

Product InformationCopy Link

0.80x1.20mm Single Row Straight DIP

配套产品

©2022 YTCO TECHNOLOGY CO.,LTD. All Rights Reserved 备案号：粤ICP备12035591号-5

Product Information Copy Link

0.80x1.20mm Single Row
Straight DIP
